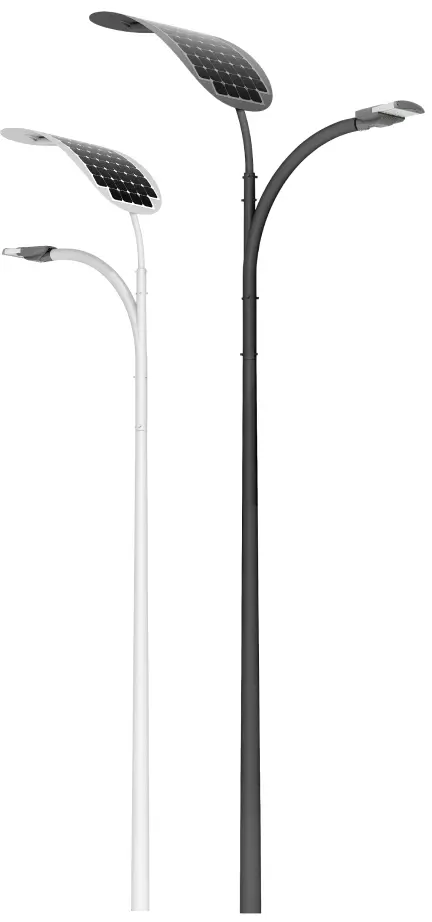

EnGo Leaf

From illuminating streets to enhancing telecommunications, security, and various off-grid applications with our smart solar LED lights, EnGoPlanet is at the forefront of driving positive change. Our vision revolves around a greener, more connected world. Join us and let’s build a sustainable future together.

Applications:

Light

Monitor

Connect

Features

Solar Powered

Remote Management

Easy & Fast Installation

Smart Sensors

High Quality Lithium Battery

3D View

Technical Data Sheet

Download PDF

EnGo Leaf 4
EnGo Leaf 4 Double
EnGo Leaf 6
EnGo Leaf 6 Double

EnGo Leaf 4 General Specifications

LED Lamp

20–30 W 180 lm/W

Solar Power

200Wp, Flexible Curved Design, SunPower Monocrystalline Solar Cell

Battery System

Lithium Ion Phosphate – LiFePO4 12V, 52Ah-104Ah

Charge Controller

MPPT Controller - 12 V

Pole

Hot Dip Galvanized + Powder Coated 4m / 13ft

Environmental Sensors

Available upon request

LED Lamp Electrical Parameters

Rated Power

20 - 30W

Operating Temperature

-40 °C ↔ +50 °C / -40 °F ↔ +122°F

Power Factor (PF)

>0.9

Protection

Class I (Class II Optional)

Rated Voltage

12 VDC

Led Lamp Photometric Characteristics

Lumen Output

180lm/W

Correlated Color Temperature (CCT)

2200 K ↔ 4000 K

Led Lamp Mechanical Characteristics

Ratings

IP 66 IK 10

Lifetime

> 100.000 hours – L70 @25°C (77 °F)

Body

Anodized Aluminum

Pole Fitter Diameter

60 mm / 2.4 in (50 mm / 2 in - Optional)

Fixture Dimension

431 × 316 × 136 mm / 17 x 12.4 x 5.4 in

Packing Dimension

480 × 370 × 200 mm / 18.9 x 14.6 x 7.9 in

Fixture Weight

5.3 kg / 11.7 lbs

Packing Weight

6.3 kg / 13.9 lbs

Solar Panel Main Characteristics

Maximum Output Power (Pmpp)

200 Wp

Power Tolerance

+/-3%

Solar Cell Efficiency

≥ 22%

Voltage at Pmpp (Vmpp)

34 V

Current at Pmpp (Impp)

5.88 A

Open Circuit Voltage (Voc)

40.8 V

Short Circuit Current (Isc)

6.47 A

Operating Temperature

-40 °C ↔ +85 °C / -40 °F ↔ 185 °F

Maximum System Voltage

700 V

Maximum Series Fuse Rating

15 A

Solar Panel Mechanical Characteristics

Solar Cell Type

Monocrystalline 125 × 125 mm / 4.9 × 4.9 in

Dimensions of Module

1570 x 920 x 2.5mm / 61.8 x 36.2 x 0.1 in

Cables Specialized for PV use

2.5mm2 × 1 m

Weight

4.5 kg / 9.9 lbs

Solar Panel Temperature Characteristics

Current Temperature Coefficient

0.05 % / °C

Voltage Temperature Coefficient

-0.35 % / °C

Power Temperature Coefficient

-0.45 % / °C

Pole Characteristics

Height

4m / 13ft

Pole Wall Thickness

approx. 4mm / 8 gauge*

Finishing Colors

White – RAL 9003 or Black – RAL 9005

Battery Storage

Inside Pole

Arm - Pole Angle

90°

Battery Main Characteristics

Type

LiFePO4

Rated Voltage

12.8 V

Rated Capacity

52 - 104 Ah

Internal Resistance

≤ 45 Ohm

Dimensions

936 mm 82 mm 42 mm / 36.9 in 3.2 in 1.7 in

Weight

4.2 kg / 9.25 lbs (with housing)

Shell Material

Poly Vinyl Chloride (PVC)

Charge Voltage

14.4 +/- 0.15 V

Charge Current

≤ 5 A

Operating Temperature

-15 °C ↔ +70 °C / 5 °F ↔ +158 °F

Passive Protection

Over–charge Protection / Over–discharge Protection / Temperature Protection / Balanced Function

Charger Controller Model Characteristics

Model

VICTRON ENERGY SmartSolar MPPT 75/15 or EnGoPlanet MPPT Controller

Battery Voltage (auto select)

12 V

Rated Charge Current

15 A

Nominal PV Power, 12 V

440 W

Max. PV Short Circuit Current

15 A

Max. PV Open Circuit Voltage

75 V

Peak Efficiency

98%

Self-Consumption - Load On/Off

24 V: 15 mA

Charge Voltage 'Absorption'

28.8 V (Adjustable)

Charge Voltage 'Float'

27.6 V (Adjustable)

Operating Temperature

-30°C ↔ + 60°C / -22°F ↔ + 140°F

Safety Standards

EN/IEC 62109-1, UL 1741, CSA C22.2

Color

Blue (RAL 5012)

Protection Category

IP43 (electronic components), IP22 (connection area)

Weight

0.5 kg / 1.1 lbs

Dimensions

100 x 113 x 40 mm / 3.9 x 4.5 x 1.6 in

EnGo Leaf 4 Double General Specifications

LED Lamp

2 x 20 W 180 lm/W

Solar Power

200Wp, Flexible Curved Design, SunPower Monocrystalline Solar Cell

Battery System

Lithium Ion Phosphate – LiFePO4 12V, 52Ah-104Ah

Charge Controller

MPPT Controller - 12 V

Pole

Hot Dip Galvanized + Powder Coated 4m / 13ft

Environmental Sensors

Available upon request

Led Lamp Electrical Parameters

Rated Power

2 x 20

Operating Temperature

-40 °C ↔ +50 °C / -40 °F ↔ +122°F

Power Factor (PF)

>0.9

Protection

Class I (Class II Optional)

Rated Voltage

12 VDC

Led Lamp Photometric Characteristics

Lumen Output

180lm/W

Correlated Color Temperature (CCT)

2200 K ↔ 4000 K

Led Lamp Mechanical Characteristics

Ratings

IP 66 IK 10

Lifetime

> 100.000 hours – L70 @25°C (77 °F)

Body

Anodized Aluminum

Pole Fitter Diameter

60 mm / 2.4 in (50 mm / 2 in - Optional)

Fixture Dimension

431 × 316 × 136 mm / 17 x 12.4 x 5.4 in

Packing Dimensions

480 × 370 × 200 mm / 18.9 x 14.6 x 7.9 in

Fixture Weight

5.3 kg / 11.7 lbs

Packing Weight

6.3 kg / 13.9 lbs

Solar Panel Main Characteristics

Maximum Output Power (Pmpp)

200 Wp

Power Tolerance

+/-3%

Solar Cell Efficiency

≥ 22%

Voltage at Pmpp (Vmpp)

34 V

Current at Pmpp (Impp)

5.88 A

Open Circuit Voltage (Voc)

40.8 V

Short Circuit Current (Isc)

6.47 A

Operating Temperature

-40 °C ↔ +85 °C / -40 °F ↔ 185 °F

Maximum System Voltage

700 V

Maximum Series Fuse Rating

15A

Solar Panel Mechanical Characteristics

Solar Cell Type

Monocrystalline 125 × 125 mm / 4.9 × 4.9 in

Dimensions of Module

1570 x 920 x 2.5mm / 61.8 x 36.2 x 0.1 in

Cables Specialized for PV use

2.5mm2 × 1 m

Weight

4.5 kg / 9.9 lbs

Solar Panel Temperature Characteristics

Current Temperature Coefficient

0.05 % / °C

Voltage Temperature Coefficient

-0.35 % / °C

Power Temperature Coefficient

-0.45 % / °C

Pole Characteristics

Height

4m / 13ft

Pole Wall Thickness

approx. 4mm / 8 gauge*

Finishing Colors

White – RAL 9003 or Black – RAL 9005

Battery Storage

Inside Pole

Arm - Pole Angle

90°

Battery Main Characteristics

Type

LiFePO4

Rated Voltage

12.8 V

Rated Capacity

52 - 104 Ah

Internal Resistance

≤ 45 Ohm

Dimensions

936 mm 82 mm 42 mm / 36.9 in 3.2 in 1.7 in

Weight

4.2 kg / 9.25 lbs (with housing)

Shell Material

Poly Vinyl Chloride (PVC)

Charge Voltage

14.4 +/- 0.15 V

Charge Current

≤ 5 A

Operating Temperature

-15 °C ↔ +70 °C / 5 °F ↔ +158 °F

Passive Protection

Over–charge Protection / Over–discharge Protection / Temperature Protection / Balanced Function

Charger Controller Model Characteristics

Model

VICTRON ENERGY SmartSolar MPPT 75/15 or EnGoPlanet MPPT Controller

Battery Voltage (auto select)

12 V

Rated Charge Current

15 A

Nominal PV Power, 12 V

440 W

Max. PV Short Circuit Current

15 A

Max. PV Open Circuit Voltage

75 V

Peak Efficiency

98%

Self-Consumption - Load On/Off

24 V: 15 mA

Charge Voltage 'Absorption'

28.8 V (Adjustable)

Charge Voltage 'Float'

27.6 V (Adjustable)

Operating Temperature

-30°C ↔ + 60°C / -22°F ↔ + 140°F

Safety Standards

EN/IEC 62109-1, UL 1741, CSA C22.2

Color

Blue (RAL 5012)

Protection Category

IP43 (electronic components), IP22 (connection area)

Weight

0.5 kg / 1.1 lbs

Dimensions

100 x 113 x 40 mm / 3.9 x 4.5 x 1.6 in

EnGo Leaf 6 General Specifications

LED Lamp

30–50 W 180 lm/W

Solar Power

200Wp, Flexible Curved Design, SunPower Monocrystalline Solar Cell (Made in USA)

Battery System

Lithium Ion Phosphate – LiFePO4 12V 52 Ah, - 104 Ah

Charge Controller

MPPT Controller - 12 V

Pole

Hot Dip Galvanized + Powder Coated 6m / 20ft

Environmental Sensors

Available upon request

Led Lamp Electrical Parameters

Rated Power

30 - 50W

Operating Temperature

-40 °C ↔ +50 °C / -40 °F ↔ +122°F

Power Factor (PF)

>0.9

Protection

Class I (Class II Optional)

Rated Voltage

12 VDC

Led Lamp Photometric Characteristics

Lumen Output

180 lm/W

Correlated Color Temperature (CCT)

2200 K ↔ 4000 K

Led Lamp Mechanical Characteristics

Ratings

IP 66 IK 10

Lifetime

> 100.000 hours – L70 @25°C (77 °F)

Body

Anodized Aluminum

Pole Fitter Diameter

60 mm / 2.4 in (50 mm / 2 in - Optional)

Fixture Dimension

431 × 316 × 136 mm / 17 x 12.4 x 5.4 in

Packing Dimension

480 × 370 × 200 mm / 18.9 x 14.6 x 7.9 in

Fixture Weight

5.3 kg / 11.7 lbs

Packing Weight

6.3 kg / 13.9 lbs

Solar Panel Main Characteristics

Maximum Output Power (Pmpp)

200 Wp

Power Tolerance

+/-3%

Solar Cell Efficiency

≥ 22%

Voltage at Pmpp (Vmpp)

34 V

Current at Pmpp (Impp)

5.88 A

Open Circuit Voltage (Voc)

40.8 V

Short Circuit Current (Isc)

6.47 A

Operating Temperature

-40 °C ↔ +85 °C / -40 °F ↔ 185 °F

Maximum System Voltage

700 V

Maximum Series Fuse Rating

15 A

Solar Panel Mechanical Characteristics

Solar Cell Type

Monocrystalline 125 × 125 mm / 4.9 × 4.9 in

Dimensions of Module

1570 x 920 x 2.5mm / 61.8 x 36.2 x 0.1 in

Cables Specialized for PV use

2.5mm2 × 1 m

Weight

4.5 kg / 9.9 lbs

Solar Panel Temperature Characteristics

Current Temperature Coefficient

0.05 % / °C

Voltage Temperature Coefficient

-0.35 % / °C

Power Temperature Coefficient

-0.45 % / °C

Pole Characteristics

Height

6m / 20ft

Pole Wall Thickness

approx. 4mm / 8 gauge*

Finishing Colors

White – RAL 9003 or Black – RAL 9005

Battery Storage

Inside Pole

Arm - Pole Angle

90°

Battery Main Characteristics

Type

LiFePO4

Rated Voltage

12.8 V

Rated Capacity

52 Ah - 104 Ah

Internal Resistance

≤ 45 Ohm

Dimensions

936 mm 82 mm 42 mm / 36.9 in 3.2 in 1.7 in

Weight

4.2 kg / 9.25 lbs (with housing)

Shell Material

Poly Vinyl Chloride (PVC)

Charge Voltage

14.4 +/- 0.15 V

Charge Current

≤ 5 A

Operating Temperature

-15 °C ↔ +70 °C / 5 °F ↔ +158 °F

Passive Protection

Over–charge Protection / Over–discharge Protection / Temperature Protection / Balanced Function

Charger Controller Model Characteristics

Model

VICTRON ENERGY SmartSolar MPPT 75/15 or EnGoPlanet MPPT Controller

Battery Voltage (auto select)

12 V

Rated Charge Current

15 A

Nominal PV Power, 12 V

440 W

Max. PV Short Circuit Current

15 A

Max. PV Open Circuit Voltage

75 V

Peak Efficiency

98%

Self-Consumption - Load On/Off

24 V: 15 mA

Charge Voltage 'Absorption'

28.8 V (Adjustable)

Charge Voltage 'Float'

27.6 V (Adjustable)

Operating Temperature

-30°C ↔ + 60°C / -22°F ↔ + 140°F

Safety Standards

EN/IEC 62109-1, UL 1741, CSA C22.2

Color

Blue (RAL 5012)

Protection Category

IP43 (electronic components), IP22 (connection area)

Weight

0.5 kg / 1.1 lbs

Dimensions

100 x 113 x 40 mm / 3.9 x 4.5 x 1.6 in

EnGo Leaf 6 Double General Specifications

LED Lamp

2 x 20W - 2 x 30W 180 lm/W

Solar Power

200Wp, Flexible Curved Design, SunPower Monocrystalline Solar Cell (Made in USA)

Battery System

Lithium Ion Phosphate – LiFePO4 12V 104 Ah, - 156 Ah

Charge Controller

MPPT Controller - 12 V

Pole

Hot Dip Galvanized + Powder Coated 6m / 20ft

Environmental Sensors

Available upon request

Led Lamp Electrical Parameters

Rated Power

2 x 20W - 2 x 30W

Operating Temperature

-40 °C ↔ +50 °C / -40 °F ↔ +122°F

Power Factor (PF)

>0.9

Protection

Class I (Class II Optional)

Rated Voltage

12 VDC

Led Lamp Photometric Characteristics

Lumen Output

180 lm/W

Correlated Color Temperature (CCT)

2200 K ↔ 4000 K

Led Lamp Mechanical Characteristics

Ratings

IP 66 IK 10

Lifetime

> 100.000 hours – L70 @25°C (77 °F)

Body

Anodized Aluminum

Pole Fitter Diameter

60 mm / 2.4 in (50 mm / 2 in - Optional)

Fixture Dimension

431 × 316 × 136 mm / 17 x 12.4 x 5.4 in

Packing Dimension

480 × 370 × 200 mm / 18.9 x 14.6 x 7.9 in

Fixture Weight

5.3 kg / 11.7 lbs

Packing Weight

6.3 kg / 13.9 lbs

Solar Panel Main Characteristics

Maximum Output Power (Pmpp)

200 Wp

Power Tolerance

+/-3%

Solar Cell Efficiency

≥ 22%

Voltage at Pmpp (Vmpp)

34 V

Current at Pmpp (Impp)

5.88 A

Open Circuit Voltage (Voc)

40.8 V

Short Circuit Current (Isc)

6.47 A

Operating Temperature

-40 °C ↔ +85 °C / -40 °F ↔ 185 °F

Maximum System Voltage

700 V

Maximum Series Fuse Rating

15 A

Solar Panel Mechanical Characteristics

Solar Cell Type

Monocrystalline 125 × 125 mm / 4.9 × 4.9 in

Dimensions of Module

1570 x 920 x 2.5mm / 61.8 x 36.2 x 0.1 in

Cables Specialized for PV use

2.5mm2 × 1 m

Weight

4.5 kg / 9.9 lbs

Solar Panel Temperature Characteristics

Current Temperature Coefficient

0.05 % / °C

Voltage Temperature Coefficient

-0.35 % / °C

Power Temperature Coefficient

-0.45 % / °C

Pole Characteristics

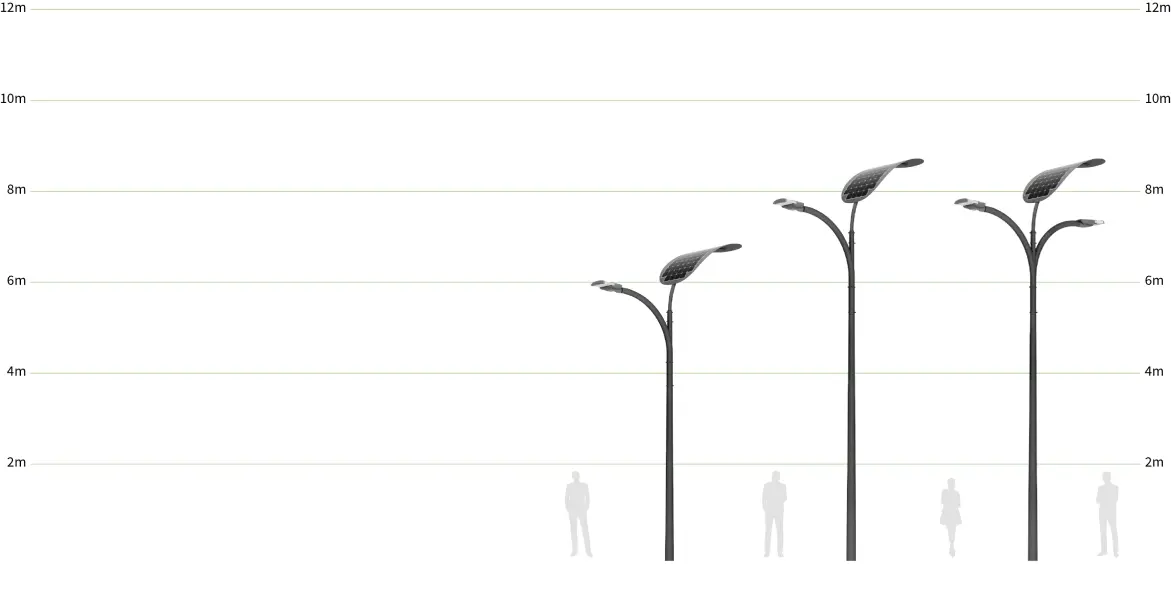

Height

6m / 20ft

Pole Wall Thickness

approx. 4mm / 8 gauge*

Finishing Colors

White – RAL 9003 or Black – RAL 9005

Battery Storage

Inside Pole

Arm - Pole Angle

90°

Battery Main Characteristics

Type

LiFePO4

Rated Voltage

12.8 V

Rated Capacity

104 Ah - 156 Ah

Internal Resistance

≤ 45 Ohm

Dimensions

936 mm 82 mm 42 mm / 36.9 in 3.2 in 1.7 in

Weight

4.2 kg / 9.25 lbs (with housing)

Shell Material

Poly Vinyl Chloride (PVC)

Charge Voltage

14.4 +/- 0.15 V

Charge Current

≤ 5 A

Operating Temperature

-15 °C ↔ +70 °C / 5 °F ↔ +158 °F

Passive Protection

Over–charge Protection / Over–discharge Protection / Temperature Protection / Balanced Function

Charger Controller Model Characteristics

Model

VICTRON ENERGY SmartSolar MPPT 75/15 or EnGoPlanet MPPT Controller

Battery Voltage (auto select)

12 V

Rated Charge Current

15 A

Nominal PV Power, 12 V

440 W

Max. PV Short Circuit Current

15 A

Max. PV Open Circuit Voltage

75 V

Peak Efficiency

98%

Self-Consumption - Load On/Off

24 V: 15 mA

Charge Voltage 'Absorption'

28.8 V (Adjustable)

Charge Voltage 'Float'

27.6 V (Adjustable)

Operating Temperature

-30°C ↔ + 60°C / -22°F ↔ + 140°F

Safety Standards

EN/IEC 62109-1, UL 1741, CSA C22.2

Color

Blue (RAL 5012)

Protection Category

IP43 (electronic components), IP22 (connection area)

Weight

0.5 kg / 1.1 lbs

Dimensions

100 x 113 x 40 mm / 3.9 x 4.5 x 1.6 in

Interactive RGB LED Ambient Light

Create New & Unique Environments

Marketing Opportunities

Generates Income with Eye-Catching Branding Space

Additional Equipment

EnGo Charge Spot - Mobile Device Charger

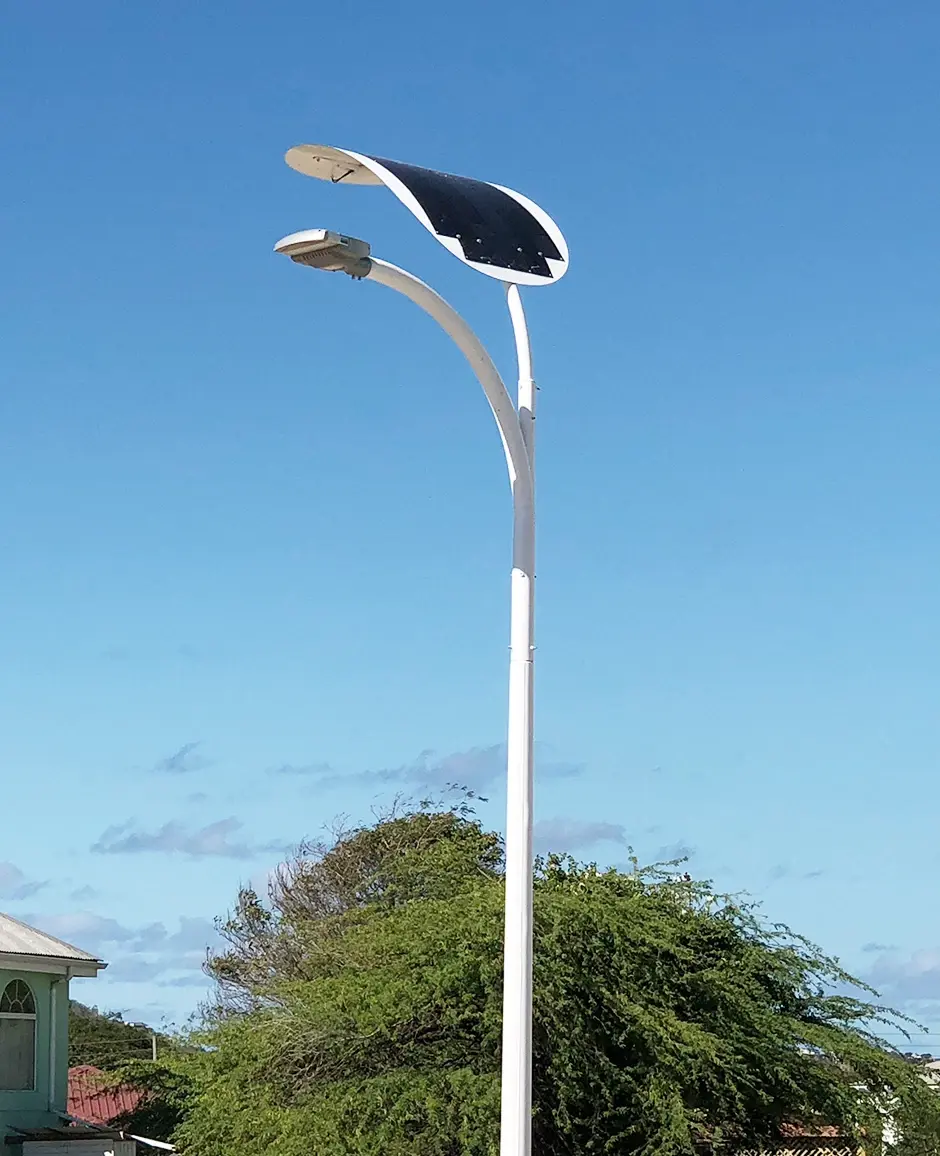

Why EnGo Leaf

The advantages of using EnGo Leaf:

Interactive RGB LED Ambient Light: Offers many colors that can be customized according to different settings and moods, from a lively atmosphere to a calming ambiance.
Marketing Opportunities: Its visible and well-lit spaces create a unique advertising platform, which is an innovative way for brands to advertise.
Additional Equipment: Includes a mobile device charger, which makes public spaces more user-friendly and accessible.
